Starline

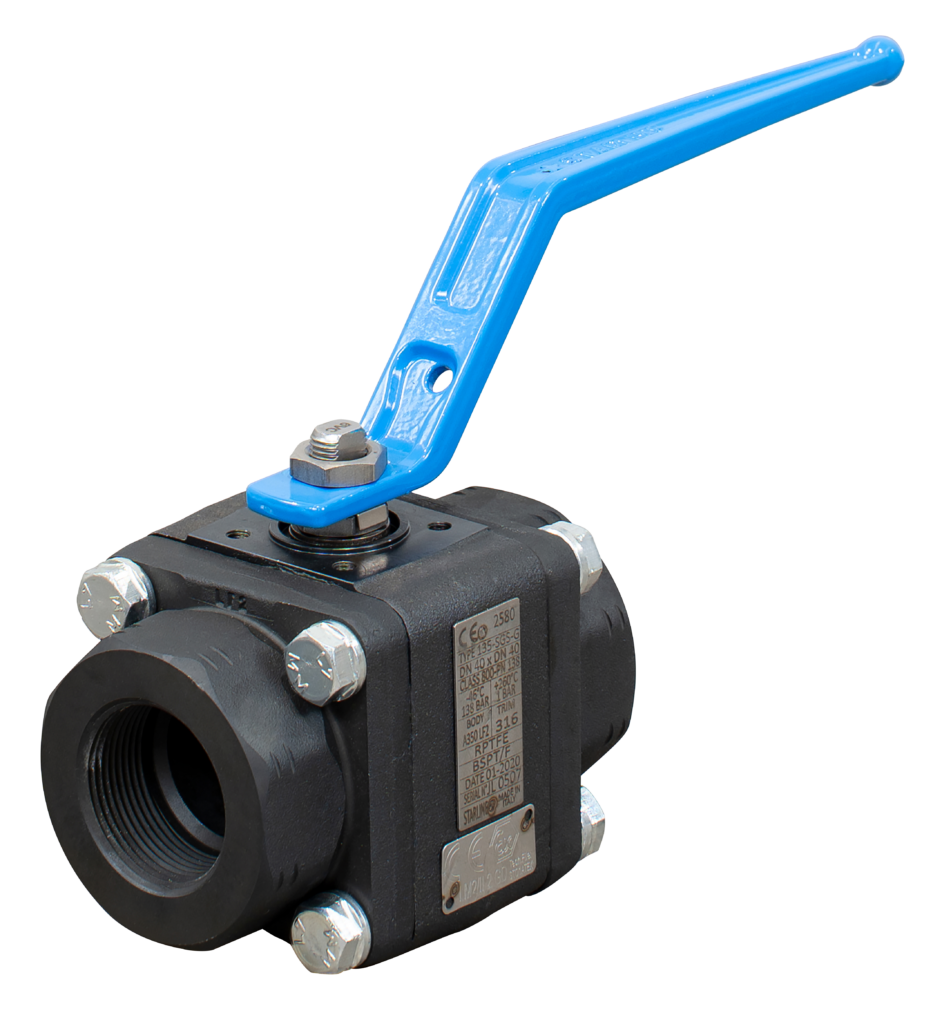

Soft Seated Floating Ball Valve
Soft seated design with Zero seat leakage, low emission design as standard.
Specifications
Size Range
1/2" - 6" Reduced & Full Bore (Refer to size & pressure rating table in product catalogue)
Pressure Class
ANSI 150-300-600-900-1500-2500#
Materials
Forged CS LF2, SS F316/L plus special Alloy materials
Trim
SS 316, high tensile strength stem materials available
Construction
2-piece & 3-piece bolted
Design
API 6D,ANSI B16.34, ISO 17292 (BS 5351)
Seat Inserts
Standard Seats PTFE / RPTFE / Devlon, multiple options available to suit application
Certification
DNV, Lloyd's register, TUV, TA-Luft,PED, ATEX, BS6364, EN 161, SIL3, DVGW, API 6D
Features
Anti Blow out stem, Anti Static device, Self Cavity pressure relief, Triple stem sealing, unique encapsulated seat design
- 1/2" - 6" Reduced & Full Bore
- Fully European
- ANSI 150-300-600-900-1500-2500#
