Pekos tank bottom floating ball valves are engineered for efficient vessel drainage, featuring an inclined stem that minimises the distance between the ball and tank bottom for complete product evacuation. Their stainless steel construction ensures durability in hygienic, chemical, and process environments, while soft- or metal-seat options provide versatility across media types. With safety-focused stem design and low-emission performance, they offer reliable, maintenance-friendly operation for demanding tank applications.
Pekos

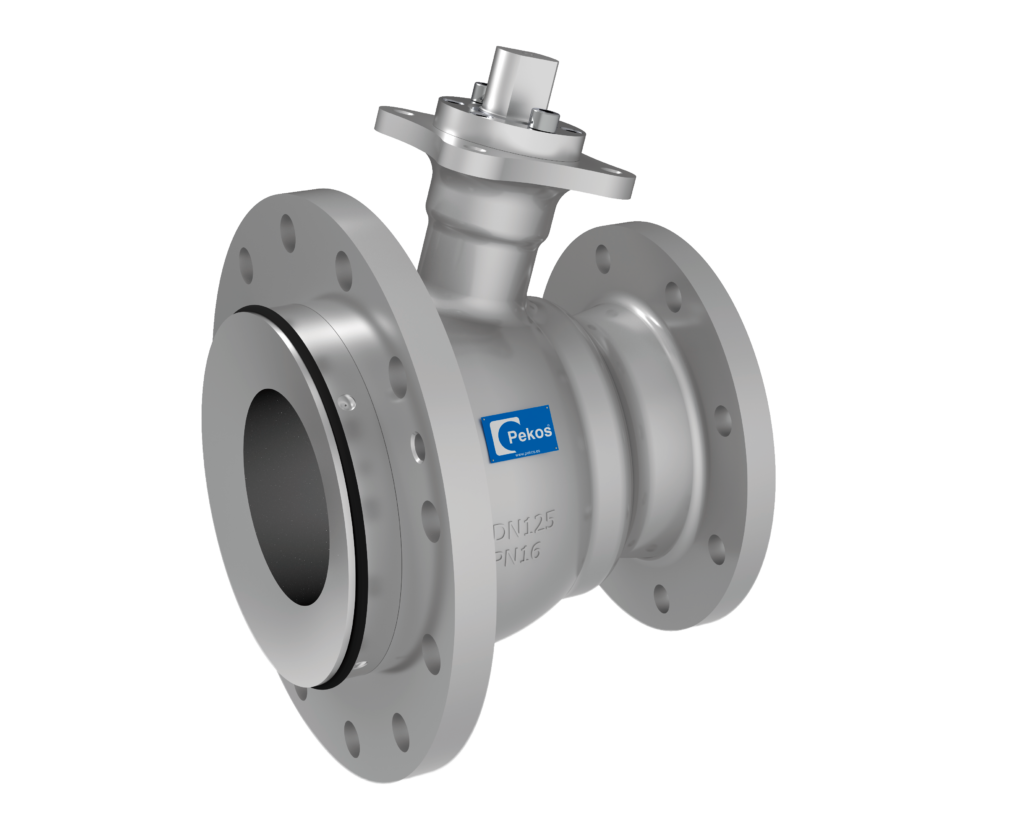

Tank Bottom Floating Ball Valve
Tank bottom valve with inclined stem, for minimal distance between the ball and tank bottom, giving easy assembly of operating and ancillary elements
Specifications
Size Range
DN 40-DN 250
Pressure Class
PN 10-16
Materials
SS 1.4408
Trim
SS 1.4408
Construction
End entry design
Design
EN-12516, ISO 17292, EN 558, EN-12266, ISO 5208
Seat Inserts
PTFE (also available with Metal seat options)
Certification
DNV, Lloyd's register, TUV, TA-Luft,PED, ATEX, SIL3, DVGW
Features
Auto adjustable packing, Anti Blow out stem, Anti Static device, Self Cavity pressure relief, seating options to suit applications
Applications
Chemical, Petrochemical, Pharmaceutical, Food & Beverage, Refining, tank drainage and vessel bottom isolation duties
- DN 40-DN 250
- Fully European
- End entry design
